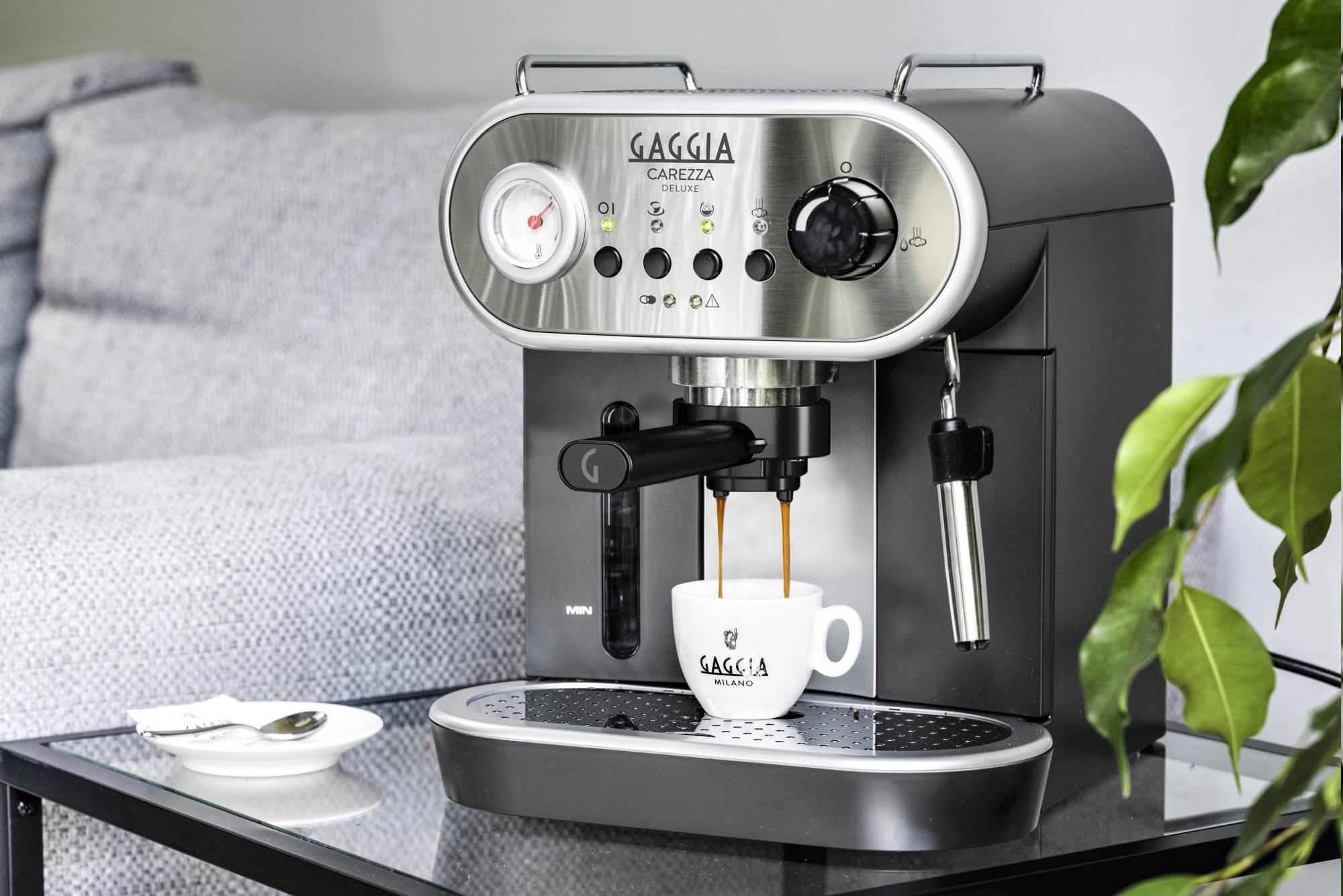

CAREZZA DELUXE

Heritage meets technology
Find out now
Focus
Colors available
Black/Silver
beverages variety
Espresso
Hot Water
Steam
to froth milk
DESIGNED AND MADE IN ITALY
Guarantee of premium quality and expression of a neverending passion for the art of espresso making.

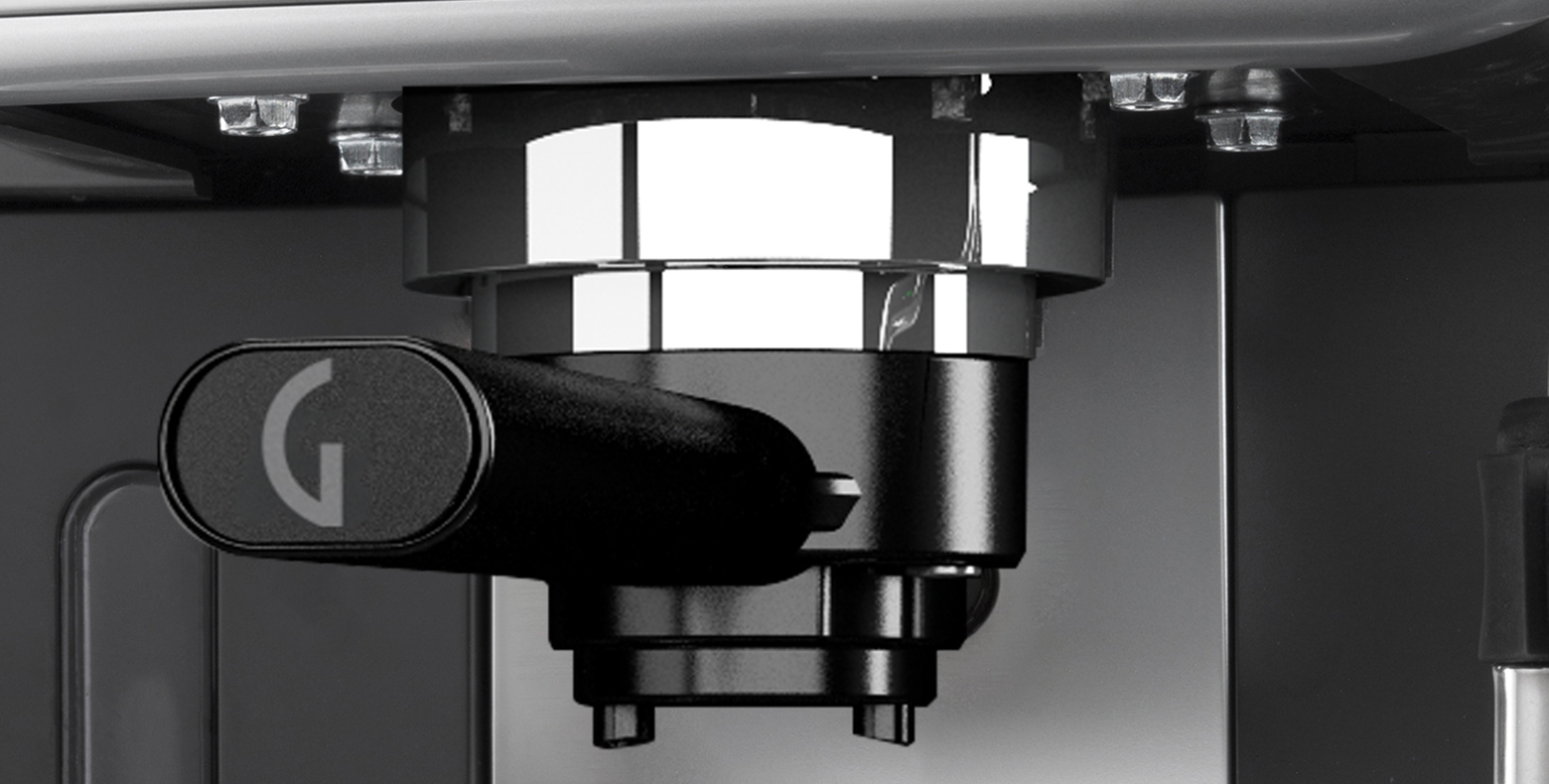

PRESSURIZED "CREMA PERFETTA" FILTER HOLDER
The pressurized "crema perfetta" filter-holder delivers a marvelous creamy layer on the top of your espresso, no matter your level of expertise and ability.
TEMPERATURE GAUGE
The integrated temperature gauge allows constant monitoring of the water temperature in the boiler to have the best result in cup at any use.
PRE-BREWING
For a more intense flavour, it is possible to select the pre-brewing option to moisten ground coffee before the actual brewing. In this way, a wider range of coffee aromas will unfold.
STAINLESS STEEL CLASSIC PANNARELLO
Gaggia Carezza Deluxe is equipped with a stainless steel classic pannarello. Unleash your inner barista and prepare delicious milk-based recipes in a few seconds, or dispense hot water to make tea and infusions.
GROUND COFFEE AND COFFEE PODS
Gaggia Carezza Deluxe comes with a filter for 1 or 2 cups of ground coffee, and a special filter for coffee pods.
DESCALING ALERT
The machine alerts you when it is time to descale it, to ensure a perfect maintenance.
CLEANING CYCLE
The machine activates an automatic rinsing cycle of the coffee circuit when you turn it on, or when it automatically shuts off. This ensures a better cleaning of the parts and a longer product life.
EXCLUSIVE DESIGN
Carezza Deluxe combines the professional tradition with the highest technology in an elegant design, vintage and modern at the same time.

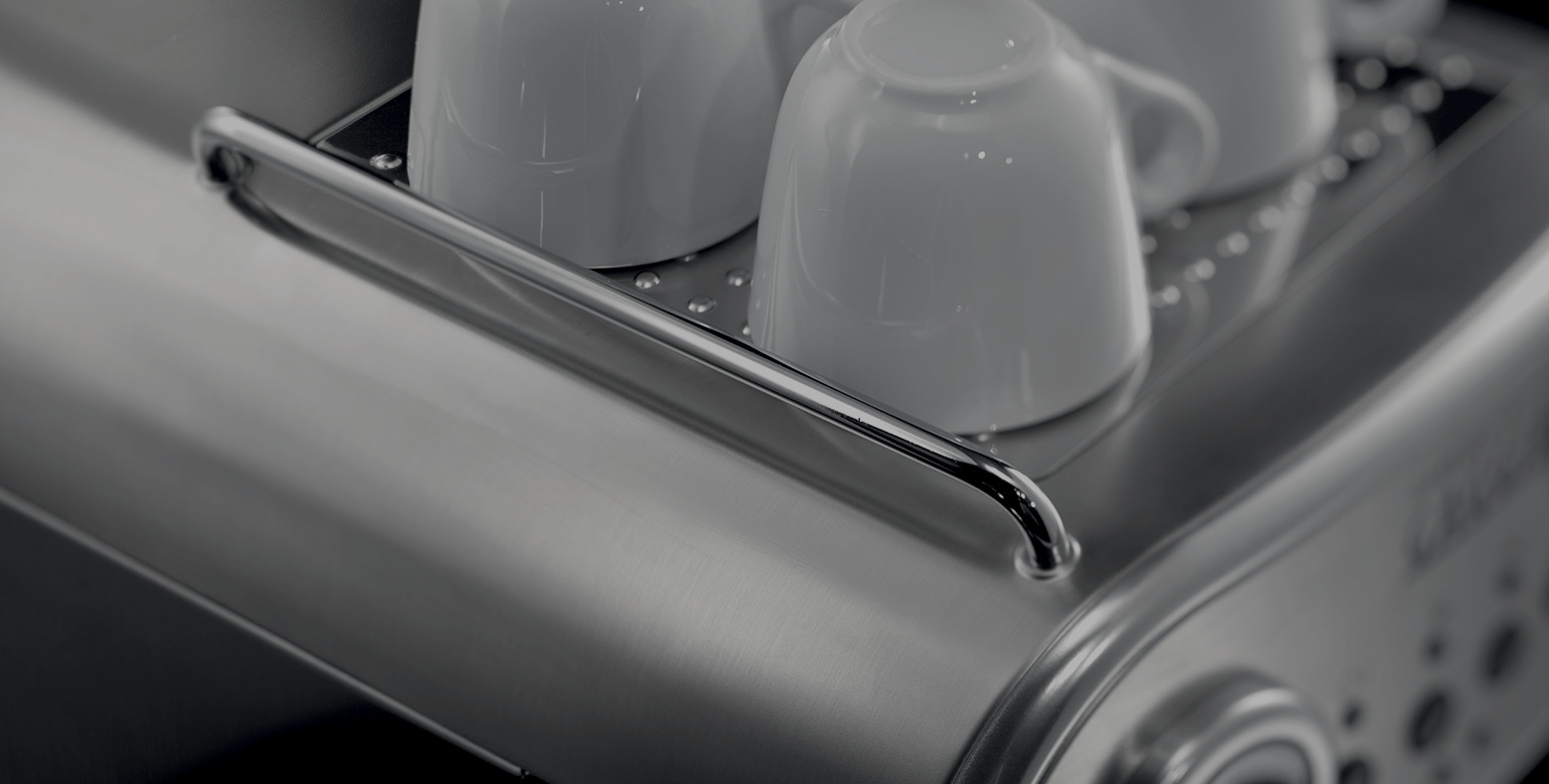

STAINLESS STEEL CUP WARMER
The stainless steel cup plate benefits from the warmth produced by the machine and keeps your cups always ready.

Tech Info

Highlights
Interface
Buttons
FILTER-HOLDER
Pressurized "crema perfetta" filter-holder
Cup plate
Stainless-Steel with side rails
Temperature Gauge
Made in Italy
Colors Available
Blackboard Black + Silver
Beverages in cup quality
Espresso
Hot water
Steam
Ground coffee
Coffee Pods
Pump pressure
15 Bar
Pre-Infusion
Filters included
2 (1 pressurized "Crema Perfetta" for 1 or 2 cups of ground coffee, 1 pressurized filter for pods)
Ease of use
Capacity Water Tank
1,4 lt
Simultaneously brewing of 2 coffee cups
Removable components
Water tank; frontal, drip tray; frontal, pannarello
Maintenance
Water filter compatibility
Rinsing cycle
Automatic
Descaling cycle
Manual
Materials, Finishing and Dimensions
Product dimensions (l x h x d)
21 x 30 x 28 cm
Product weight
5,8 kg
Group and filter-holder
Aluminum + plastic
Hot water/Steam Dispenser
Classic Stainless Steel Pannarello
Bodywork
ABS + Stainless steel panel
Drip tray
Plastic and stainless steel
Energy Consumption
Boiler
Stainless steel
Power Supply
230-240V 50Hz 1900W; 120V 60Hz 1300W
Stand-by
Accessories
Included accessories
Ground coffee doser/tamper
Overview
TEMPERATURE GAUGE
It allows a precise monitoring of the water temperature in the boiler
PRESSURIZED «CREMA PERFETTA» FILTER HOLDER
For impeccable espresso, always topped with a rich layer of "crema naturale"
STAINLESS STEEL CUP WARMER
Keeps your coffee cups always warm to preserve the taste of the espresso
PRE-BREWING SYSTEM
Few seconds between the first shower of hot water and the brewing process to extract the full bouquet of coffee aromas
Download
Select language
English
Dansk
Deutsch
Ελληνικά
Español
Français
Italiano
Nederlands
Norsk
Português
Suomi
Svenska
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE - USA / CANADA
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE - USA
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE - USA / CANADA
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
INSTRUCTIONS BOOKLET CAREZZA RANGE
Download
SAFETY NORMS
Download
DECLARATION OF CONFORMITY
Download
WARRANTY
Download
F.A.Q.
Category
TECHNICAL INFORMATION
5
BEVERAGES MAKING
5
CLEANING & MAINTENANCE
6
WHERE TO BUY
1
TECHNICAL INFORMATION
What is the difference between a manual and a superautomatic espresso machine?

If you’d like to relive the traditional barista’s rituals at home and be the protagonist of your espresso, a manual machine is the best choice. Learning how to make an impeccable espresso requires care and practice, but it is definitely worth it. Thanks to the pannarello, you can also prepare creamy cappuccinos and experiment the “latte art” easily, as well as dispense water for teas and infusions. In this way, you will have a personal “coffee corner” at your home. If you prefer to obtain excellent results in a fast way, a superautomatic machine is what suits you the best. Just by pressing a button, it makes espresso, cappuccino and other hot beverages that can be customized as you prefer in a few easy steps. Moreover, the integrated grinder lets you have freshly ground coffee at every use.

Which are the technologic differences between the traditional and the pressurized filter-holders?

The pressurized “crema perfetta” filter-holder guarantees and keeps the right pressure to get perfect in-cup results anytime, regardless your level of expertise. While the traditional filter-holder has the same size, ring and style of the professional ones, thus it requires more practice, ability and care for all the involved elements. By paying attention to all details of the barista’s ritual – from the type of blend to the grinding, from the pressure used for tamping to the correct position of the filter-holder in the group – you will obtain an authentic espresso, like the one you taste in an Italian bar.

What is the temperature gauge for?

The temperature gauge allows a constant monitoring of the water temperature in the tank, to have the best in-cup result.

Can I use pods?

The Gaggia manual espresso machines offer the possibility to use paper pods. To get a good in-cup result, it is fundamental to follow the procedure illustrated in the instruction booklet. Be sure to use the correct filter (traditional filter for 1 cup) and standard pods (44mm).

WHY ARE THERE LEAKAGES FROM THE FILTER-HOLDER?

There should not be leakages from the filter-holder, if it is positioned correctly. When locking it to the machine, turn it further to the right, until it locks into place, and make sure that, once released, it is positioned perpendicular to the machine.

Click here to download the instructions to use the filter-holder of Gaggia Carezza in the best way > Portafilter Gaggia Carezza

BEVERAGES MAKING
How can I make a traditional Italian espresso?

1. Choose the blend you like the most and be sure that it is an high quality selection.
2. If you decide to use coffee beans, grind them at the right size: not too coarse (or water will flow too fast) and not too fine (or water will not flow)
3. Insert the “crema perfetta” filter for ground coffee in the filter-holder
4. Put 1-1,5 servings for a single espresso or 2 for 2 cups using the ground coffee doser
5. Slightly press with the back of the ground coffee doser. It is not necessary to press too much, as the pressurized filter-holder has a system optimized to brew a perfect espresso anytime
6. Remove any coffee residues from the edges of the filter-holder
7. Turn the pressurized filter-holder from left to right until it locks into place. Release the pressurized filter-holder grip. The handle will turn slightly to the left. This movement guarantees optimum filter-holder performance.
8. Press the coffee button to start the brewing process
9. When you get the desidered in-cup quantity, press the button once again to stop the brewing process. Now your espresso is ready!

How can I get an even warmer espresso?

To get an even warmer espresso, we suggest to follow these three little tips.

1. Turn on the machine a few minutes before using it, so it can heat properly and get ready to use.
2. Keep the clean filter-holder locked to the group – not too tight – both during the heating phase and after cleaning. This preserves the temperature and avoids termal shocks.
3. Pre-heat the cups by placing them on the cup warmer or dispense a bit of hot water with the pannarello on the cups, then wipe them with a cloth

Which milk can I use to get a velvety milk froth?

We suggest to use whole cold milk (at circa 5° C / 41° F), with a protein content of at least 3% and a fat content of at least 3.5%. Proteins will incorporate air in the cream, while fats will make it dense and steady. Also semi-skimmed cow milk, some lactose-free milk and soy drink are proven to deliver a good result.

How can I froth milk for cappuccinos and other drinks?

1. Place a cup under the pannarello
2. Press the steam button. When the light is steady, the machine is ready to dispense steam.
3. Turn the steam/hot water knob slightly counter-clockwise to eliminate any condensation from the pannarello 4. close the knob again and remove the cup.
5. Place a jug, filled for 1/3 with cold milk, under the pannarello
6. Turn the steam dispensing knob counter-clockwise to let the steam come out. Move the jug slowly, up and down, to heat the milk evenly, and turn the knob clockwise.
7. Once the desired frothing has been achieved, close the steam knob by turning it clockwise to stop dispensing steam, and remove the jug.
8. Press the steam button

For more details, please follow the procedure in the instruction booklet

Can I use mineral water?

Yes, you can use mineral still water or tap water. It is important not to use sparkling water as it can negatively affect the brewing process.

CLEANING & MAINTENANCE
How to prime/flush the machine?

Before you use your Manual Espresso machine for the first time or in case the internal circuit has run out of water, you need to flush/prime the machine with fresh water. Here below the easy instructions to follow:

1. Rinse, fill and reinsert the water tank
2. Turn on the machine by pressing the button and wait for the “coffee” led to turn on, steady
3. Place a container under the pannarello and open the knob by turning it clockwise
4. Dispense the whole water tank and close the knob
5. Fill again the water tank and place it back
6. Lock the filter-holder correctly
7. Place a container under the pannarello and click the “coffee” button. Dispense only a cup of water, stop the dispensing by clicking again on the “coffee” button
8. Repeat to empty the water tank.
The machine is now flushed/primed and ready for use.

When do I have to descale my machine?

Scale is a normal consequence of using the machine, and it depends also on the quality of the water you use. We suggest to descale the machine every 2 months and/or whenever you notice a reduction in the water flow. We suggest to follow the step-by-step procedure illustrated in the instruction booklet and to only use the Gaggia descaler that is especially thought especially for our espresso machines.

Which descaler can I use?

To descale your Gaggia coffee machine use only the Gaggia decalcifier, a unique solution made to ensure excellent performances of the machine throughout time. Vinegar or other descaling agents must be avoided. Never use descaling agents based on mineral acids such as sulfuric acid, hydrochloric acid and sulfamic acid. These descaling agents may damage your coffee machine’s pipe and tube system.

How to properly clean the filter-holder?

In order to properly clean the filter-holder you need to:

1. Remove the filter that is installed
2. Wash the filter under tap water (not in the dishwasher)
3. Wash the inside of the traditional filter-holder under tap water (not in the dishwasher).

When and how to clean the filters?

Filters must be kept clean to guarantee an every day perfect result. If you notice a malfunction when brewing coffee, immerse the filters in boiling water for 10 minutes and then rinse them with running water. For a more thorough cleaning, use the Gaggia oil remover tablets.

Which components are removable and washable?

It is possible to remove the water tank, the pannarello, the drip tray and drip tray plate. We suggest to wash them under tap water and to delicately wipe them with a clean cloth. We advise against washing these components in the dishwasher.

WHERE TO BUY
Where can I buy a Gaggia manual espresso machine?

To buy Gaggia espresso machines, we suggest to contact Gaggia’s official distributor for your Country to whom you can directly refer to. You can easily find it here.

Compare
Do you want to compare it with other machines?
Select up to two!
CLASSIC EVO
CLASSIC ENERGY VIBES EVO
CLASSIC COLOR VIBES EVO
Espresso Evolution
Espresso Deluxe
Espresso Style
CLASSIC 30
EG2109
You may also like
NEW CLASSIC
View details

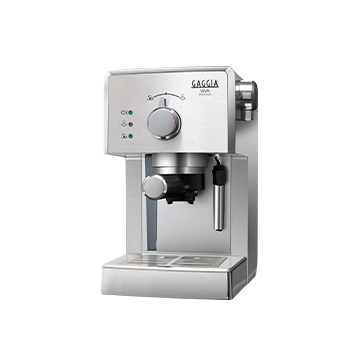

VIVA PRESTIGE
